Engelsk produktnavn: Uni-T UT705 Process Calibrator

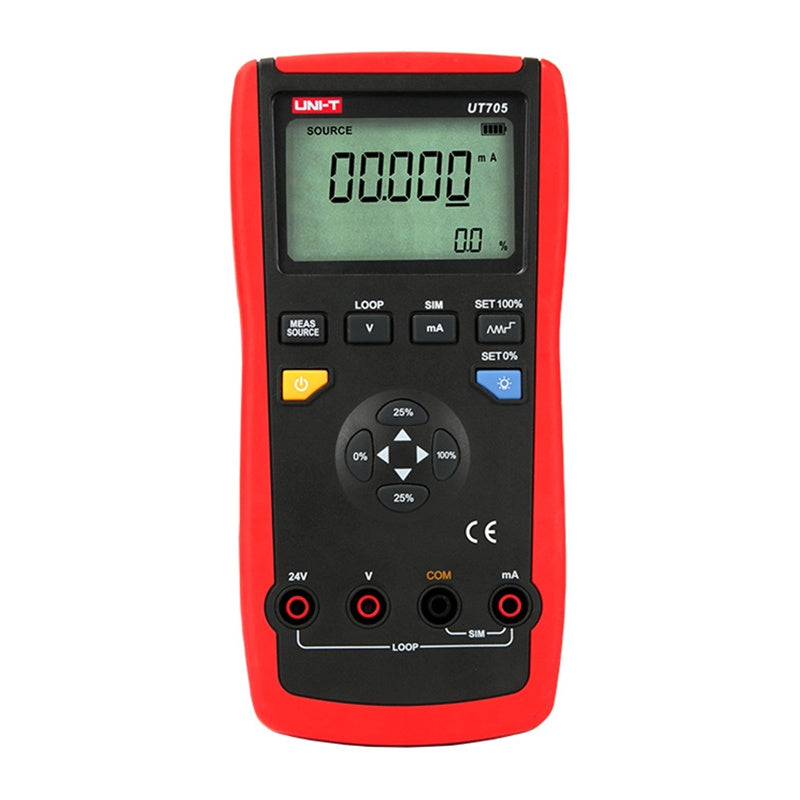

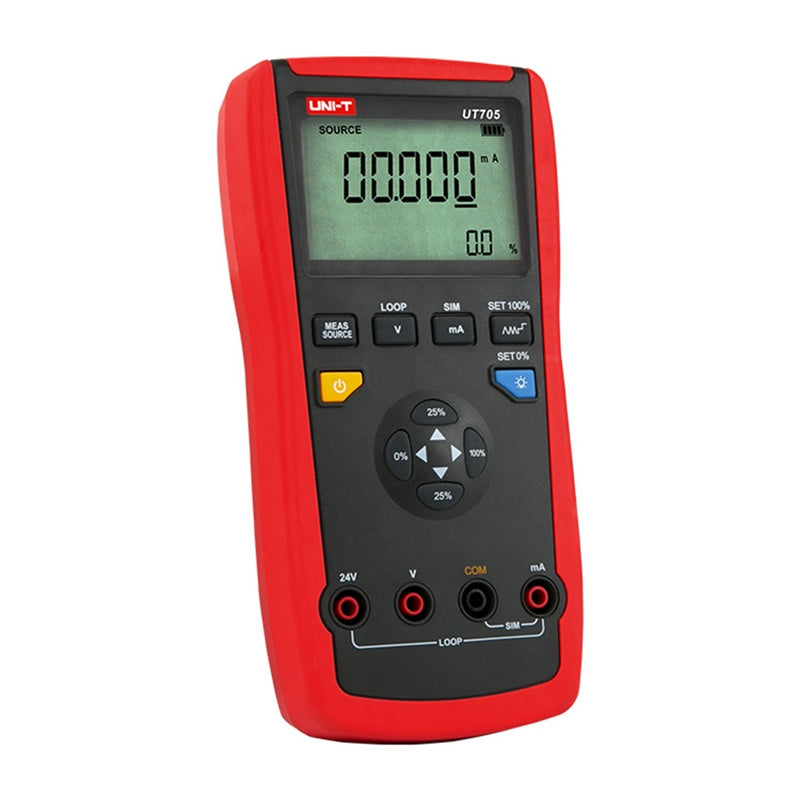

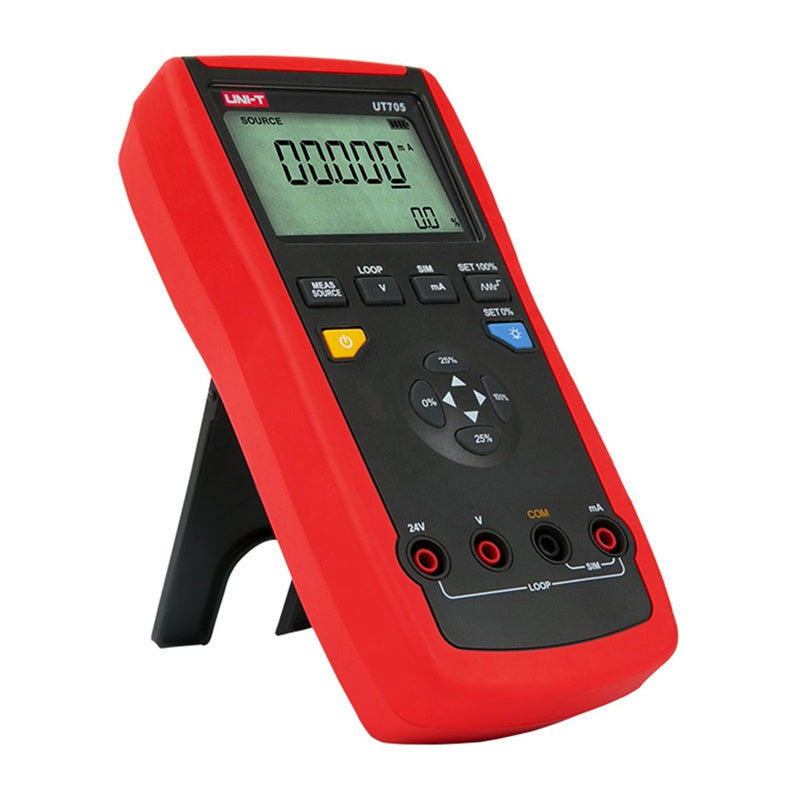

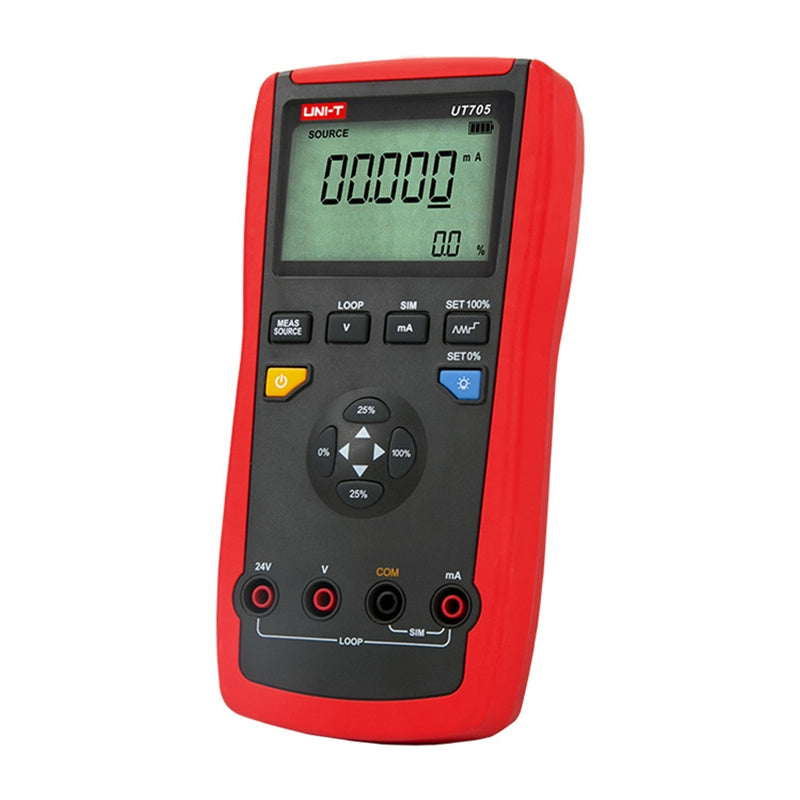

Uni-T UT705 process calibrator
The Uni-T UT705 is a current loop calibrator designed for calibration, diagnostics, and maintenance work in industrial automation systems. The device can measure DC voltage up to 30,000 V, as well as DC current and loop current up to 24,000 mA. It also supports DC current source, current simulation, and 24 V loop power supply functions, enabling comprehensive testing and monitoring of transducers and other process system components. High measurement accuracy of ±(0.02%+2) ensures reliable results during demanding calibration tasks.
Features to streamline daily work
The UT705 is equipped with manual and automatic signal ramping functions, 25% and 100% range step modes, and the ability to save and recall settings, which significantly speeds up repetitive tasks. The backlit display makes it easy to read data in various lighting conditions, and the auto-off feature helps conserve energy. Weighing 410 g and measuring 96 × 193 × 47 mm, the device remains convenient for transport and daily use, and its resistance to drops from a height of 1 meter increases its durability during field and workshop work.
Included
- Process calibrator
- Test leads (1 pair)
- 9V battery (6F22)
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT705 |
| Product type | Process loop calibrator |
| DC voltage measurement range | 30.000 V ±(0.02% + 2) |
| DC current measurement range | 24.000 mA ±(0.02% + 2) |
| Loop current measurement range | 24.000 mA ±(0.02% + 2) |
| DC current source range | 24.000 mA ±(0.02% + 2) |
| DC current simulation range | 24.000 mA ±(0.02% + 2) |
| Loop power supply output | 24 V |
| Loop power supply accuracy | 10% |
| Ramping functions | Slow ramp, fast ramp, step ramp |
| Step functions | 25% of range, 100% of range |
| Settings memory (Save/Recall) | Yes |
| LCD backlight | Yes |
| Auto power off | Yes |
| Drop resistance | 1 m |
| Power supply | 9V battery (6F22) |
| Display dimensions | 63 × 40 mm |
| Color | Red and gray |
| Dimensions | 96 × 193 × 47 mm |
| Weight | 410 g |
| Certifications | CE, UKCA |
