Engelsk produktnavn: Uni-T UT691-01 Visual Fault Locator

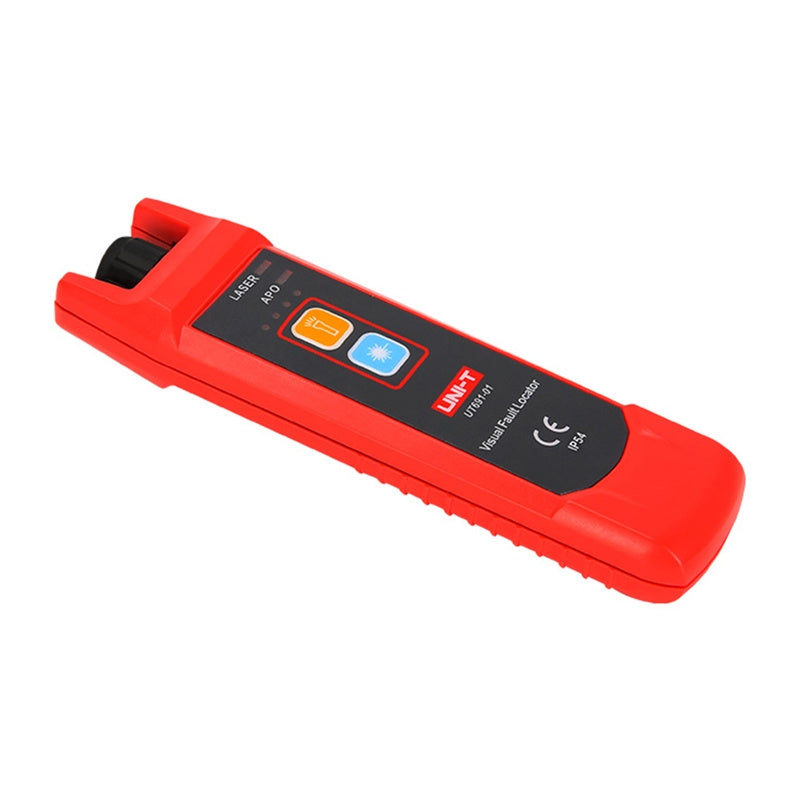

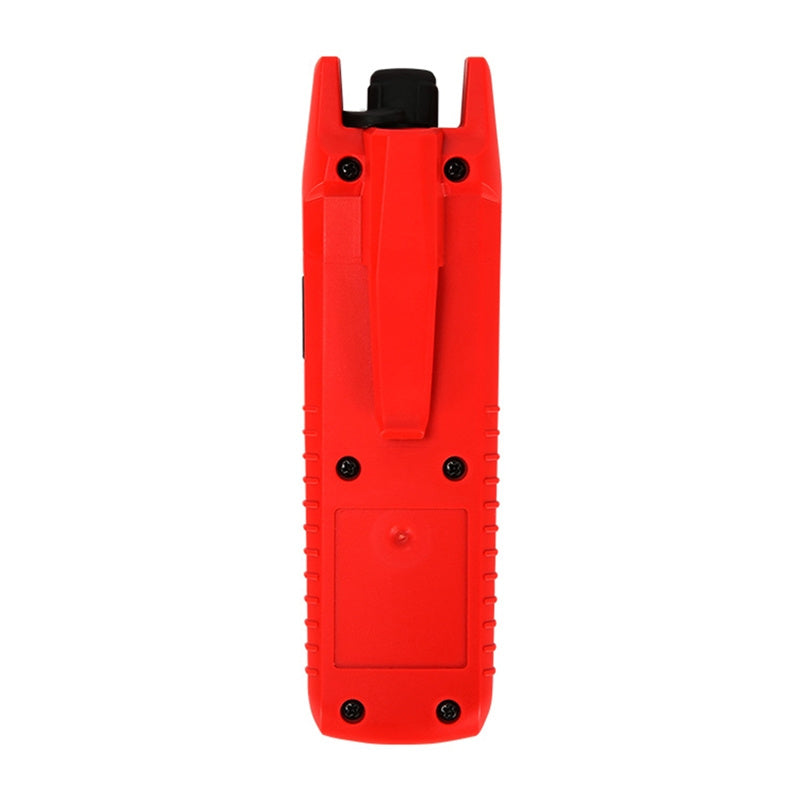

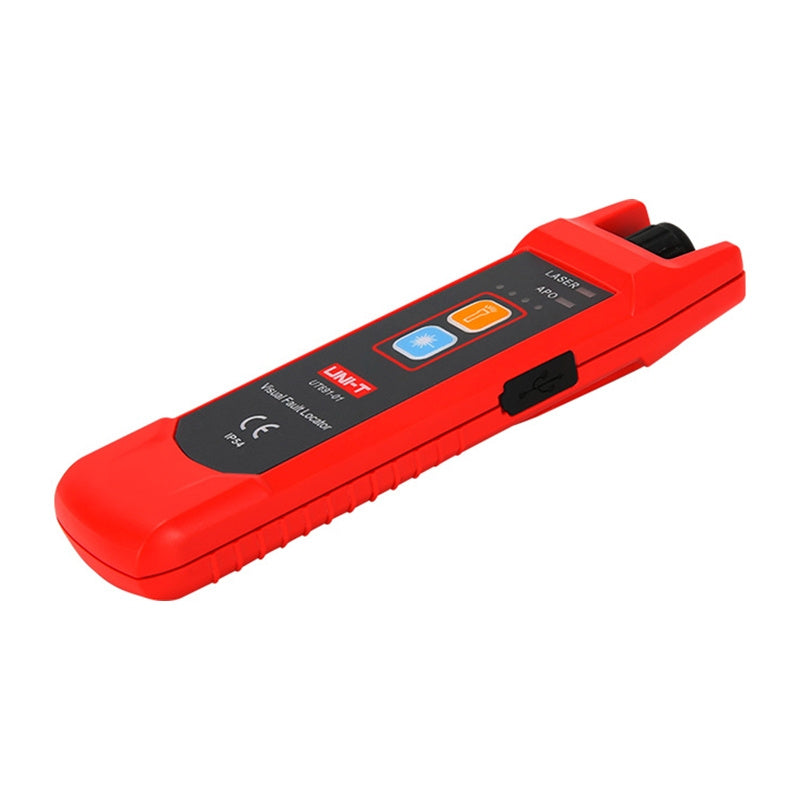

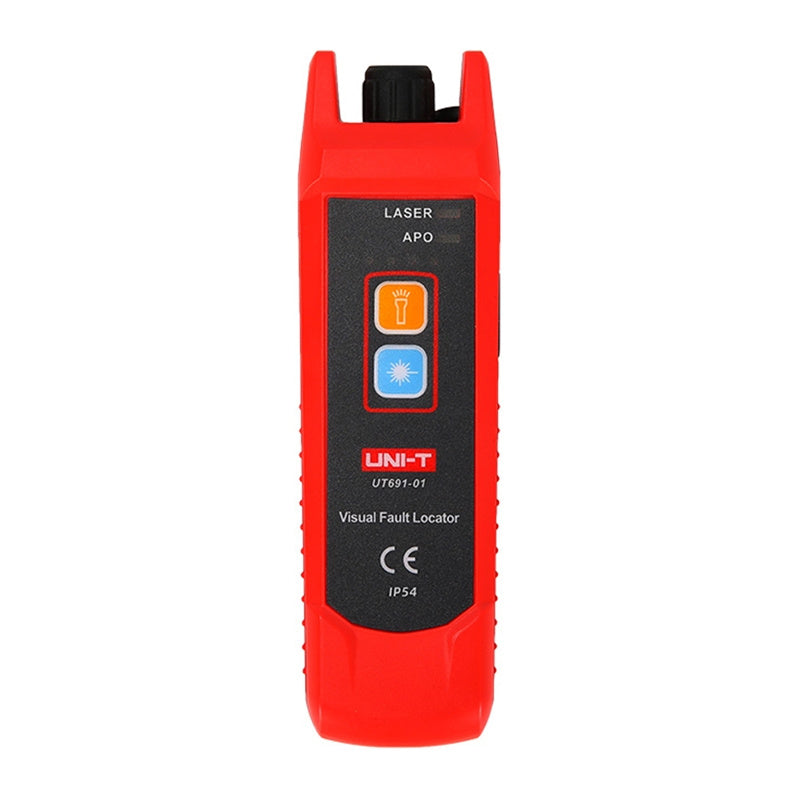

Uni-T UT691-01 visual fault locator
The Uni-T UT691-01 is a visual fault locator designed for detecting faults in optical fibers, identifying fibers, and performing maintenance work on optical installations. The device uses a red laser with a wavelength of 650 ±10 nm and offers both continuous and pulsed modes, which facilitates fault location and connection verification. An output power of at least 1 mW allows for operation with fiber optic sections ranging from 2 to 3 km in length, and the universal 2.5 mm FC connector ensures compatibility with popular fiber optic installations.
Convenient operation during daily work
The device is equipped with a 3.7 V lithium-polymer battery with a capacity of 1050 mAh, which provides over 12 hours of operation on a single charge. A battery level indicator, a built-in LED flashlight, and an automatic shut-off function after 15 minutes enhance user comfort and help conserve energy. The non-slip housing, which meets the IP54 standard, and its ability to withstand drops from a height of 1 meter make the locator well-suited for field work, while its compact dimensions of 130 × 38 × 27 mm and weight of 62 g make it easy to transport and store.
Included
- Visual fault locator
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT691-01 |
| Product type | Visual fault locator |
| Laser output power | ≥1 mW |
| Testing range | 2–3 km |
| Laser wavelength | 650 ± 10 nm |

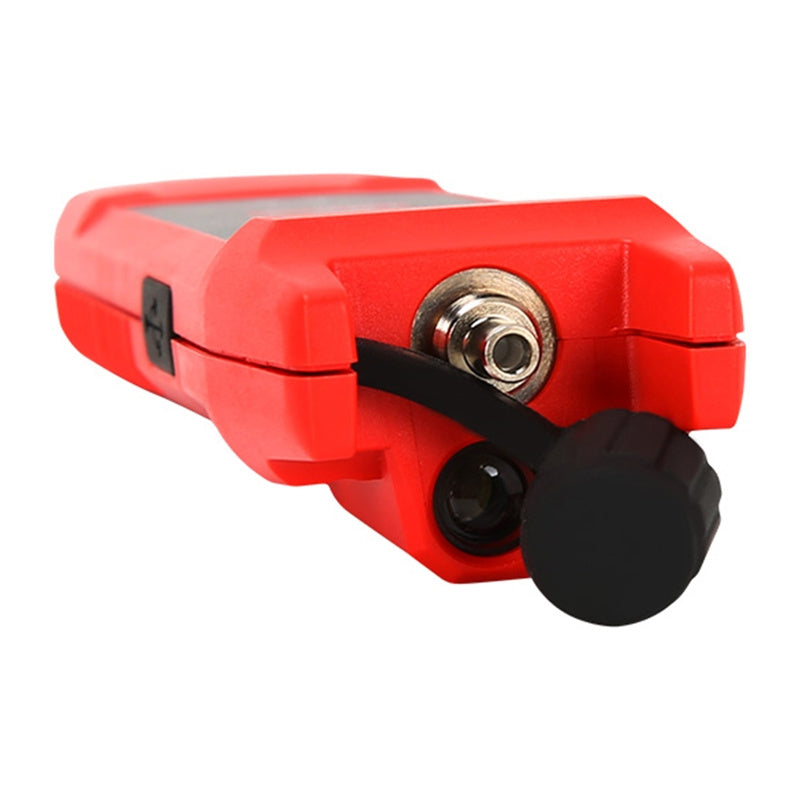

| Connector type | Universal 2.5 mm (FC) |
| Laser operating modes | Continuous, pulsed |
| Power supply | 3.7 V / 1050 mAh lithium-polymer rechargeable battery |
| Operating time | >12 h |
| Battery status indicator | 4 blue LEDs |
| Charging voltage and current | DC 5 V / <1 A |
| Auto-off timer | 15 min (manually adjustable) |
| Warning features | Visual symbols, audio warnings |
| Button durability test | 5000 cycles |
| Drop resistance | 1 m |
| Protection rating | IP54 |
| LED flashlight | Yes |
| Color | Red and gray |
| Dimensions | 130 × 38 × 27 mm |
| Weight | 62 g |
| Certifications | CE, UKCA |
