Engelsk produktnavn: Uni-T UT663B-3m Borescope

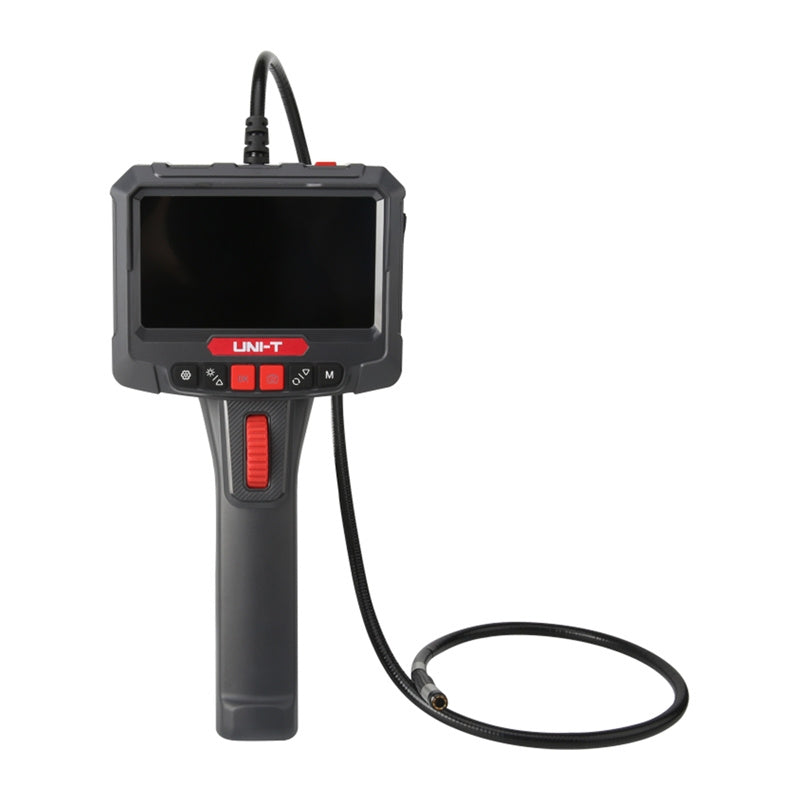

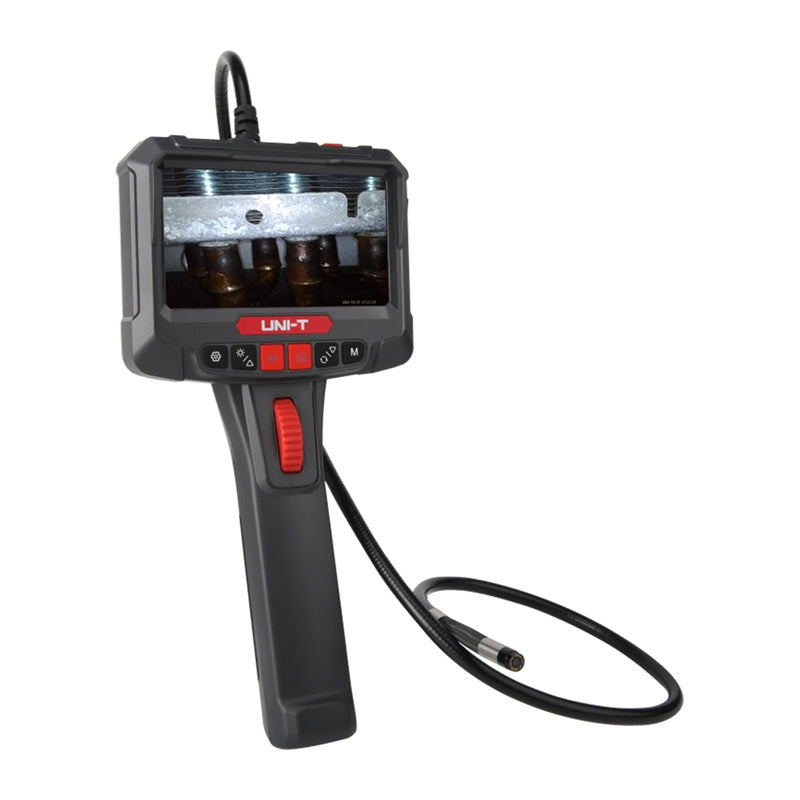

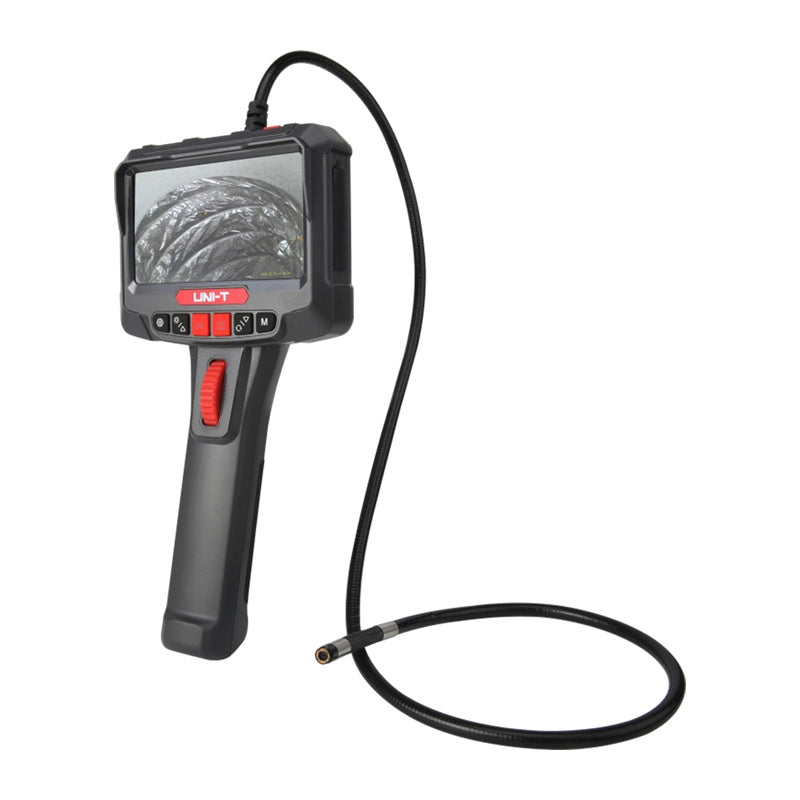

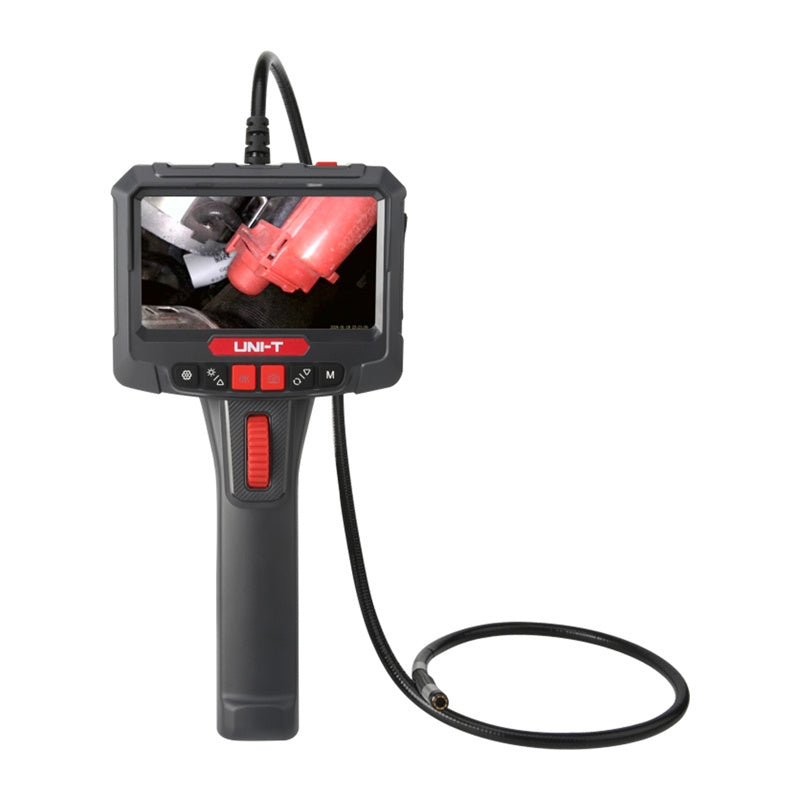

Uni-T UT663B-3m Borescope
The Uni-T UT663B-3m is an industrial borescope designed for use in complex spaces that are beyond the reach of the human eye. The device was created for inspections in narrow, curved, and hard-to-reach areas where precise inspection is essential without the need to disassemble components. The model is equipped with a camera featuring 180° bidirectional rotation, a 5.0" screen, and a 3-meter cable, which facilitates inspections in more demanding conditions.
Better visibility and greater image control
The borescope features a 5.0" screen, supports 1920 x 1080 resolution photos, and records video in AVI 1920 x 1080 format, allowing you to conveniently document the inspection process. The 8 mm diameter camera with a CMOS sensor provides a 70° field of view and a depth of field of 20–100 mm, helping you closely observe the inspected components. Available features also include photo capture, video recording, playback, image rotation, audio recording, and high-temperature warning.
Rotating head and operation in hard-to-reach areas
The most important feature of the UT663B-3m model is its rotating head with a 180° bidirectional range, which allows you to avoid blind spots and adjust the viewing angle more conveniently. A rigid 3-meter metal cable extends the operating range and makes it easier to reach deeper spaces. This solution is particularly effective where standard borescopes have limited maneuverability.
Durable construction and documentation-ready
The camera meets the IP67 standard, and 8 LEDs with 4-step brightness adjustment improve visibility in dark interiors of devices and installations. The device uses a 3.7 V / 3000 mAh battery, which provides up to 4 hours of operation, and a standard 32 GB TF card allows you to save photos and videos immediately. It is a practical tool for technical, maintenance, and diagnostic inspections where ease of use and the ability to record results are essential.

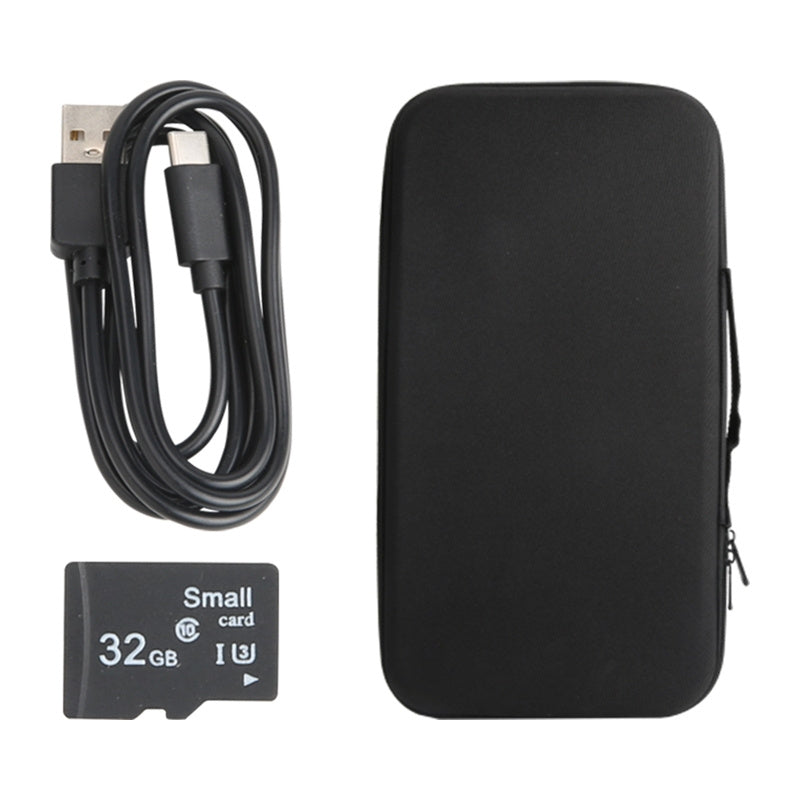

Included
- Industrial borescope with 360° rotating head
- Type-C cable
- Box
- Fabric carrying case
- 32GB TF card
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT663B-3m |
| Type | Industrial borescope |
| Screen size | 5.0" |
| System languages | English, Simplified Chinese, Traditional Chinese, Japanese, German, Spanish, French, Italian, Korean |
| Photo resolution | JPG 1920 x 1080 |
| Video resolution | AVI 1920 x 1080 |
| Basic functions | Photo capture, video recording, playback, high-temperature protection, image rotation, audio recording |
| Memory | 32GB TF card |
| Maximum memory capacity | 64GB |
| Rotation angle | 180° bidirectional |
| Cable material | Metal, rigid |
| Cable length | 3m |
| Lens diameter | 8mm |
| Light sensor | CMOS |
| Field of view | 70° |
| Depth of field | 20 ~ 100mm |
| LED light adjustment | 4 settings |
| Number of LEDs | 8 |
| Camera resolution | 1000K |
| IP rating | IP67 |
| Battery | 3.7V / 3000mAh |
| Operating time | 4h |
| Lens temperature | 0°C ~ 80°C |
| Operating temperature | 0°C ~ 45°C |
| Operating humidity | <90% RH non-condensing |
| Certifications | CE, RoHS |
