Engelsk produktnavn: Uni-T UT216A Digital Clamp Meter

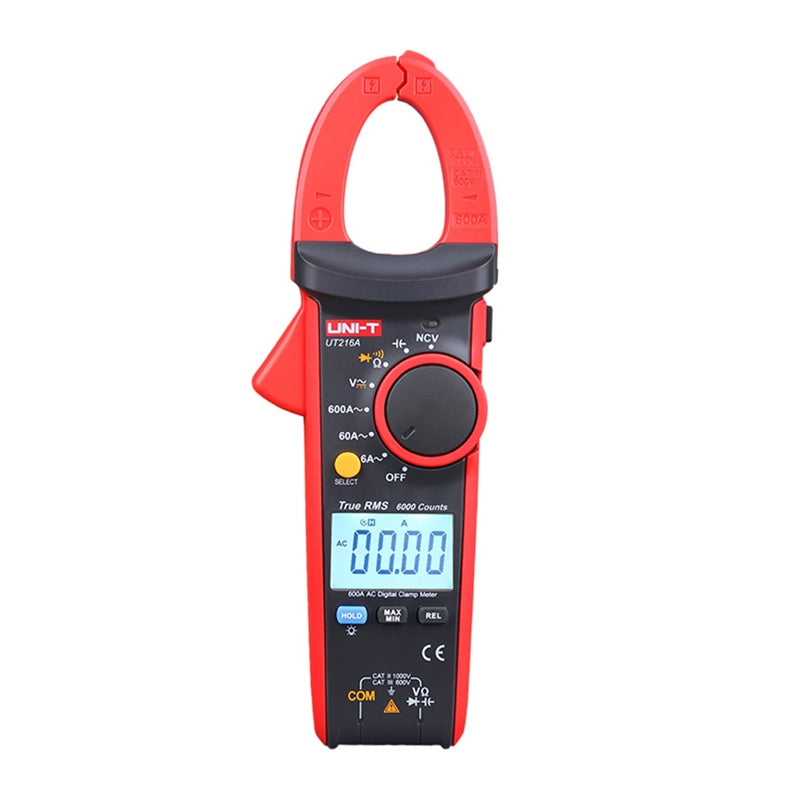

Uni-T UT216A digital clamp meter
The Uni-T UT216A is a digital clamp meter designed for use with electrical installations and systems operating at high frequencies, such as IT infrastructure and server rooms. The clamp design allows for quick current measurement without the need to disconnect the circuit, which significantly streamlines diagnostics. The model can measure AC current up to 600 A, AC voltage up to 750 V, and DC voltage up to 1000 V, making it suitable for both routine maintenance and more demanding measurements. Support for higher voltage frequencies expands its application in modern electronic and power supply systems.
Features that enhance convenience and measurement accuracy
The meter is equipped with a True RMS function, which ensures accurate measurements of alternating signals, while the MAX/MIN and Relative modes facilitate the analysis of parameter changes. Non-contact voltage detection (NCV) allows you to quickly check for the presence of voltage without touching the wire, while the Data Hold function allows you to conveniently freeze the result on the screen. The ergonomic housing, 30 mm jaw opening, backlit display, and built-in flashlight enhance comfort in various working conditions, while the auto-off feature and low-battery indicator assist in daily use.

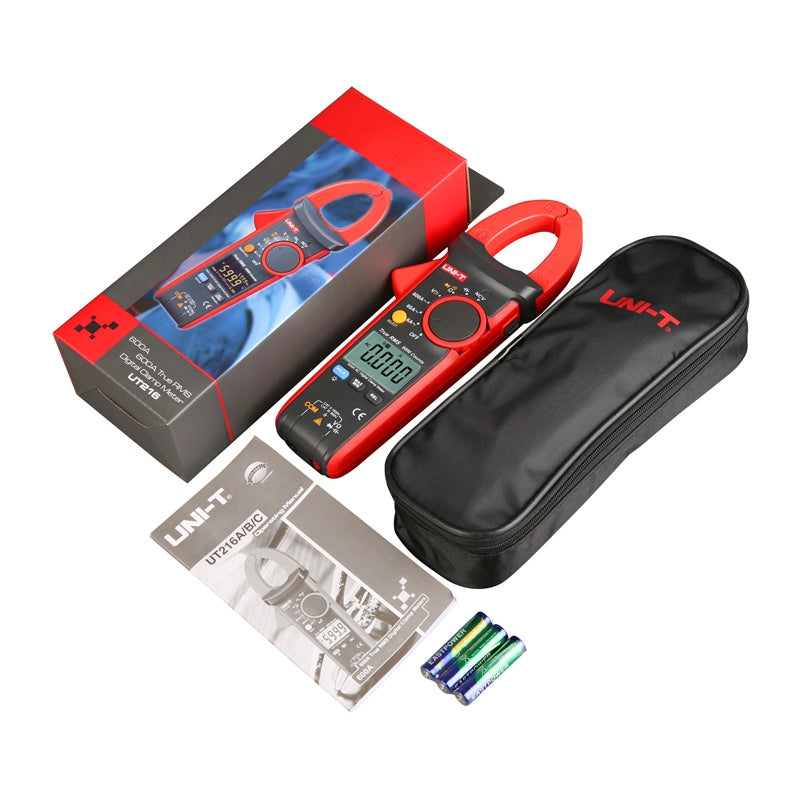

Included
- Clamp meter
- Test leads (1 pair)
- 3 AAA batteries
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT216A |
| Product type | True RMS digital clamp meter |
| AC current range | 600 A ±(2.5% + 5) |
| AC current frequency response | 50 / 60 Hz |
| AC voltage range | 750 V ±(1.2% + 5) |
| AC voltage frequency response | 40 Hz – 400 Hz |
| DC voltage range | 1000 V ±(0.8% + 1) |
| Resistance measurement range | 60 MΩ ±(1% + 2) |
| Capacitance measurement range | 60 mF ±(4% + 5) |
| Maximum display reading | 6000 |
| Functions | True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, MAX/MIN, LCD backlight, flashlight, auto-range, auto-off, low battery indicator |
| Jaw opening | 30 mm |
| Power supply | 3 × 1.5 V (R03) |
| Display dimensions | 38 × 24 mm |
| Dimensions | 220 × 75 × 40 mm |
| Weight | 280 g |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
