Uni-T UT205E digitalt tangamperemeter
14 dages fortrydelsesret
Du kan fortryde dit køb i 14 dage fra den dag, du modtager varen.
Engelsk produktnavn: Uni-T UT205E Digital Clamp Meter

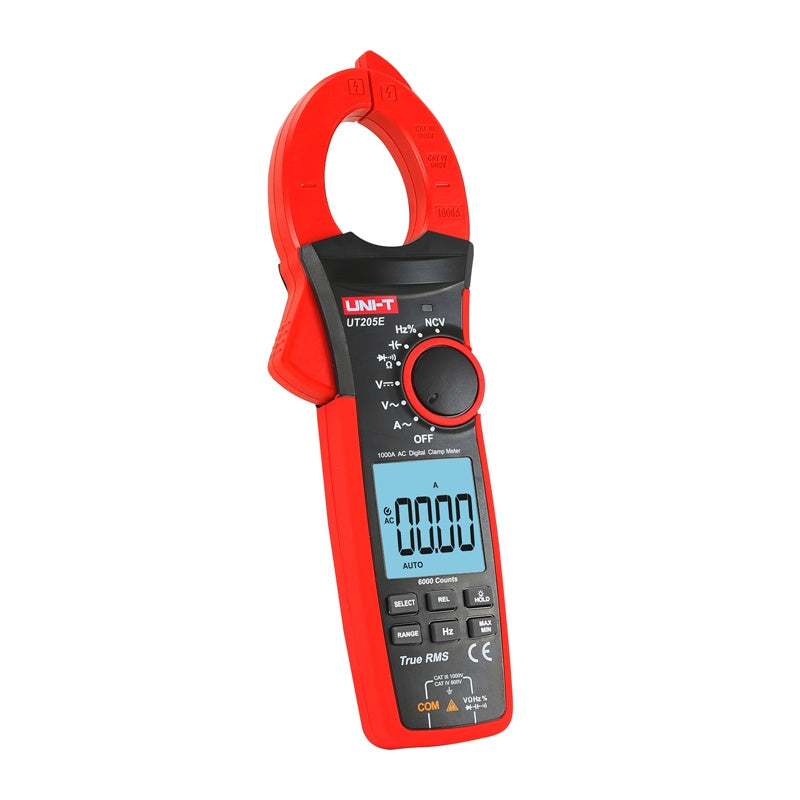

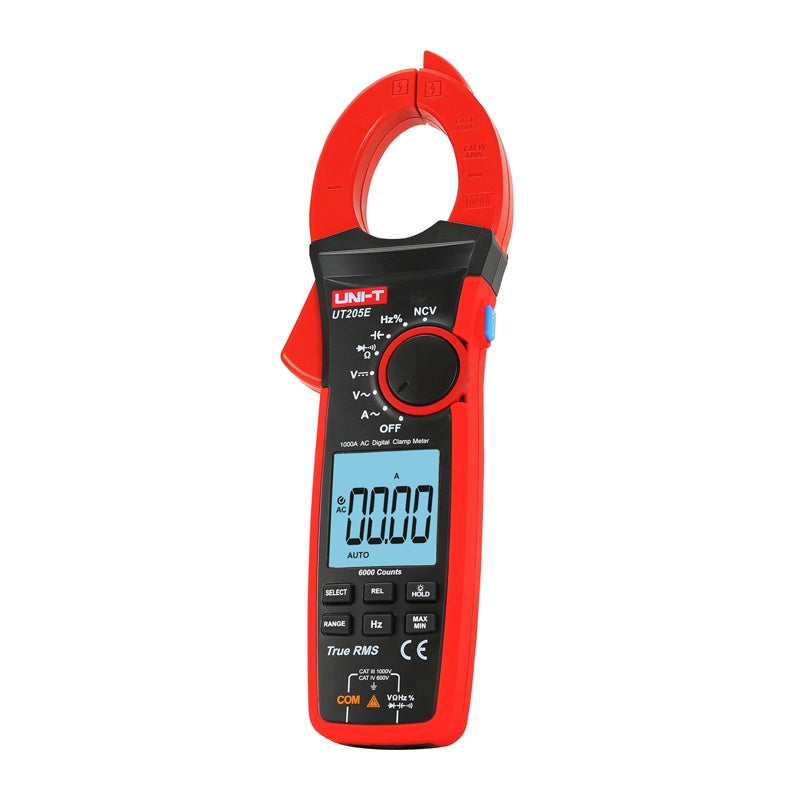

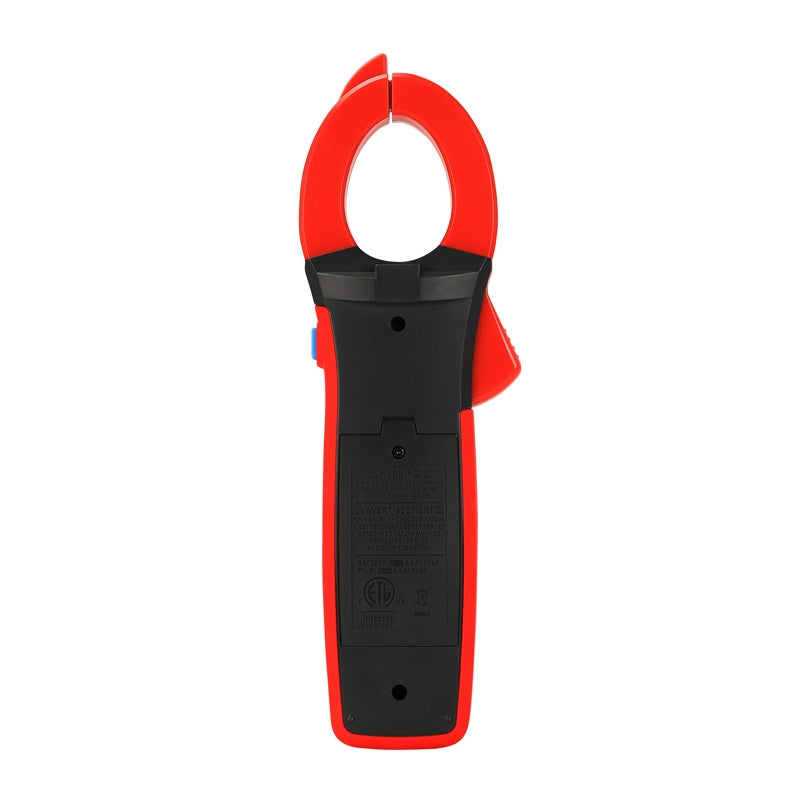

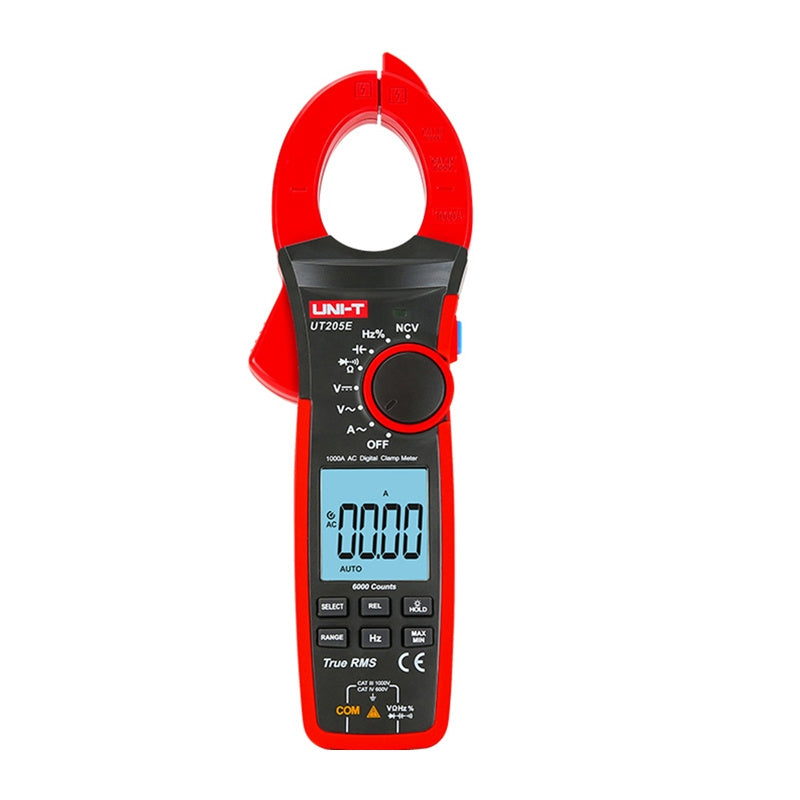

Uni-T UT205E digital clamp meter
The Uni-T UT205E digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circuit, which significantly facilitates field work and operations at switchgear panels.
Wide measurement range
The UT205E model can measure AC current up to 1000A and AC/DC voltage up to 1000V, allowing you to work with more demanding installations. Additionally, it supports resistance, capacitance, frequency, and duty cycle measurements, expanding its diagnostic capabilities.
Features that make work easier
True RMS ensures more accurate measurements, while features such as NCV, backlight, and flashlight improve working comfort. Automatic range selection and a clear display facilitate quick measurements in various conditions.
Intuitive design and safety
The large screen and 42 mm jaw opening allow for comfortable work even with thick cables. The device complies with CAT III 1000V / CAT IV 600V standards, ensuring safe use.
Included
- Clamp meter
- Test leads (1 pair)
- 3 AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT205E |
| Product type | True RMS clamp meter |
| AC current range | 1000 A ±(2% + 5) |
| AC current frequency response | 50 Hz – 60 Hz |
| AC voltage range | 1000 V ±(1.2% + 3) |
| DC voltage range | 1000 V ±(0.5% + 5) |
| AC voltage frequency response | 40 Hz – 400 Hz |
| Resistance measurement range | 60 MΩ ±(1% + 2) |
| Capacitance measurement range | 60 mF ±(4% + 5) |
| Frequency range | 10 Hz – 1 MHz ±(0.1% + 3) |
| Duty cycle range | 10% – 90% ±(2.6% + 7) |
| Maximum display reading | 6000 |
| Functions | True RMS, NCV, backlight, flashlight, automatic range switching |
| Jaw opening | 42 mm |
| Measurement category | CAT III 1000V / CAT IV 600V |
| Power supply | 3 × 1.5 V (R03) |
| Display dimensions | 43 × 45 mm |
| Dimensions | 272 × 81 × 43.5 mm |
| Weight | 465 g |
| Certifications | CE, UKCA, cETLus |
