Engelsk produktnavn: Digital Clamp Meter Habotest HT206D True RMS , NCV, LPF

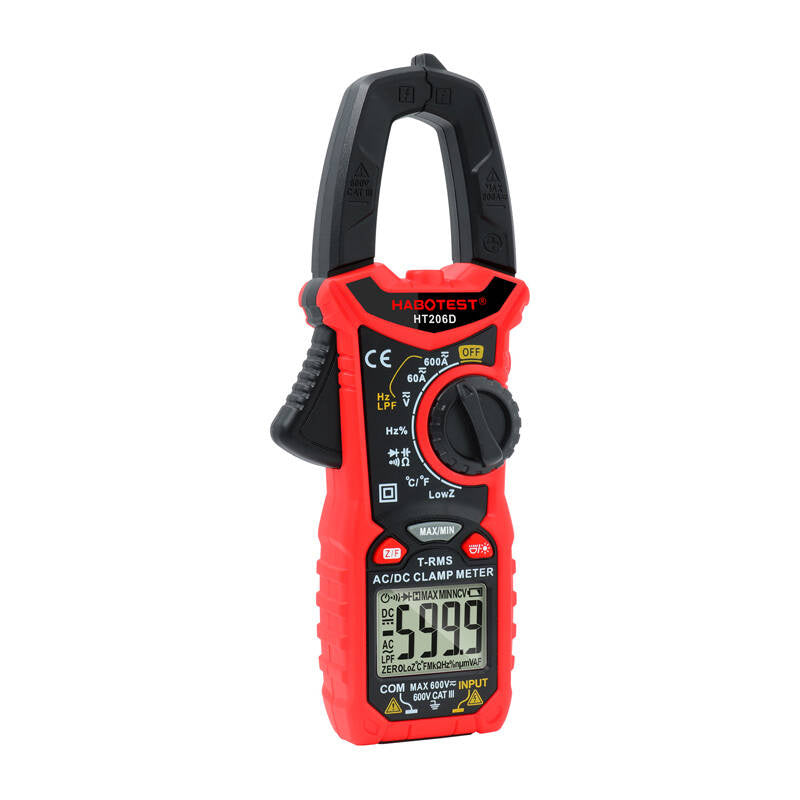

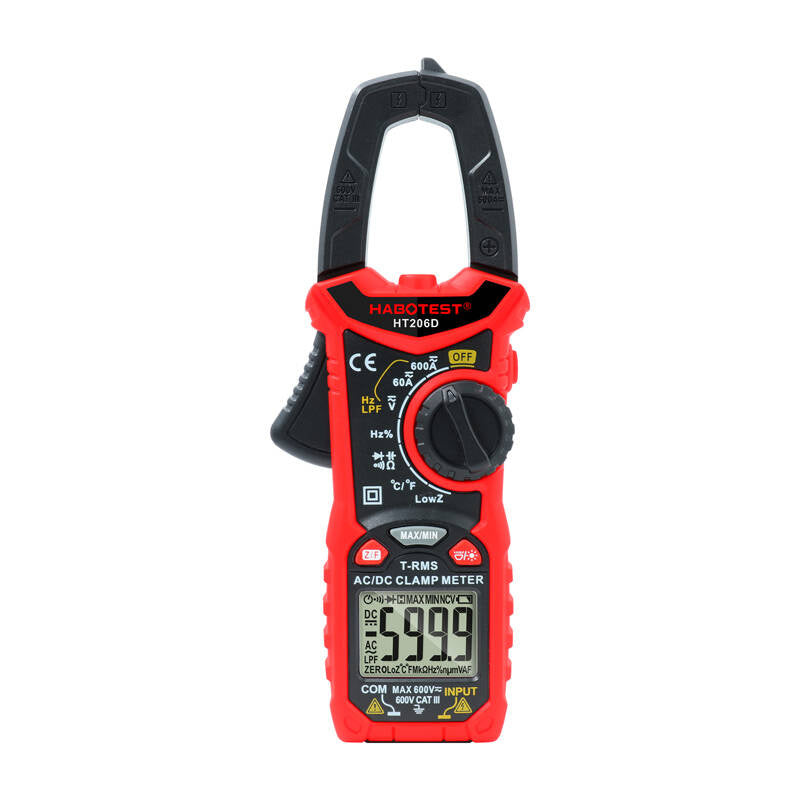

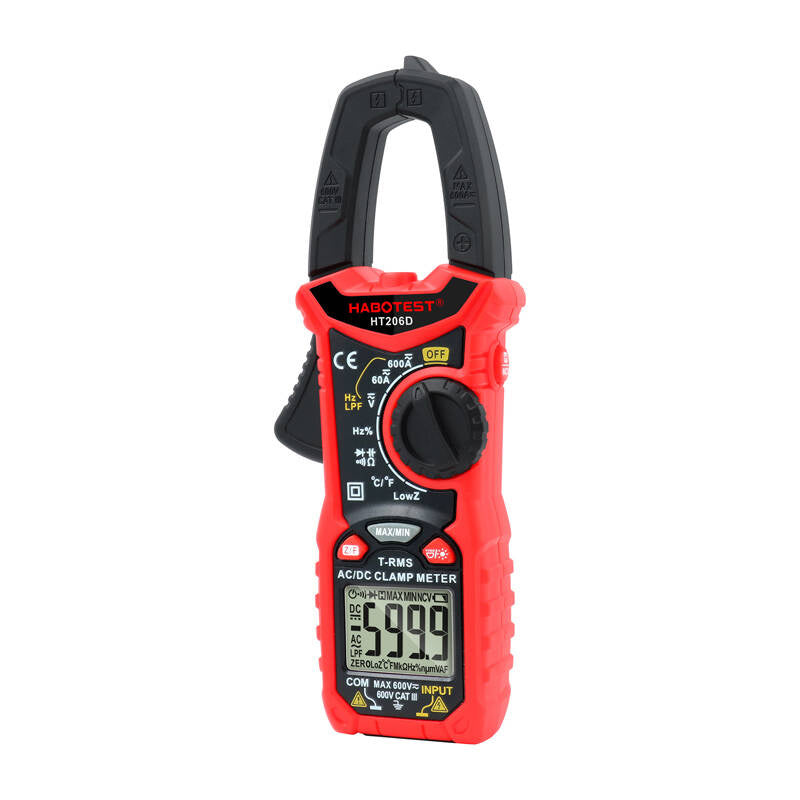

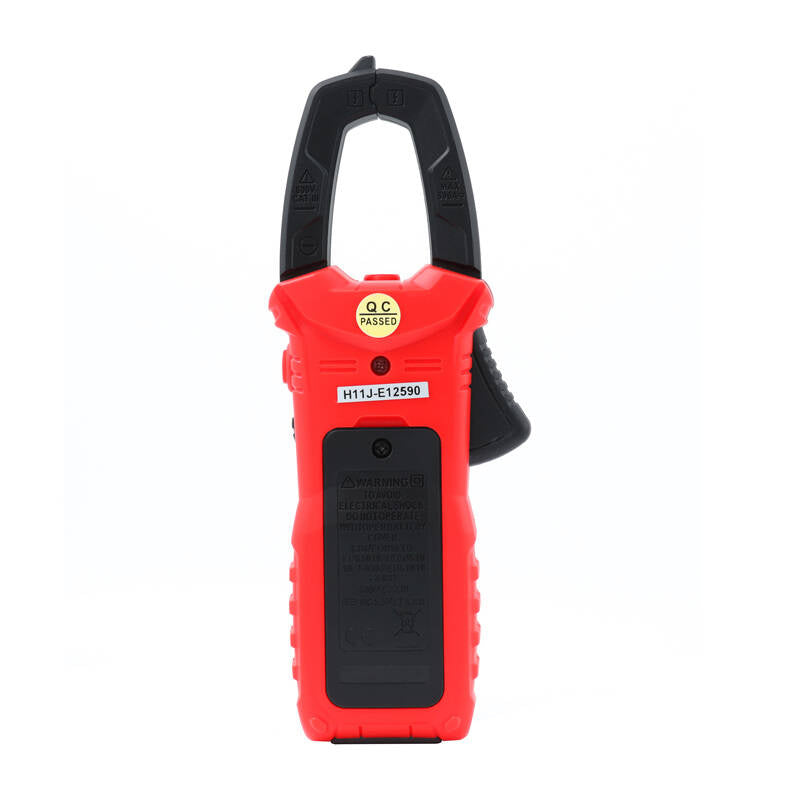

Habotest HT206D digital clamp meter
The functional clamp meter by Habotest guarantees precise measurement, the results of which are displayed on an easy-to-read, backlit LCD screen. The size of the jaws is up to 26 mm, which allows comfortable operation of the device. The HT206D is also equipped with a flashlight, which facilitates work in dark rooms.
Measures various parameters
With this universal meter you can check the value of many different parameters. Using the HT206D, you will measure capacitance, AC voltage, resistance, AC current and even temperature. However, that's not all! Built-in NCV sensors enable non-contact voltage measurement.
Clear, practical display
The meter is equipped with an LCD display with backlighting in 2 colors. You will find on it not only measurement results, but also, for example, a low battery indicator. This allows you to use the HT206D comfortably. What's more, the backlight will turn orange when the value of the measured voltage exceeds 80 V and the current exceeds 3 A.
Easy operation in all conditions
The built-in flashlight provides bright illumination, so you can also work in dark places without difficulty. Operation of the device is also facilitated by intuitive buttons, with which, among other things, you can quickly and conveniently select a function, use the MAX/MIN measurement option, and turn the light on or off. An additional advantage of the meter is the data storage option.
| Manufacturer | Habotest | |
|---|---|---|
| Model | HT206A | HT206D |
| DC voltage measurement range | 400 mV/4 V/40 V/400 V/600 V±(0,5%+5) | 600 mV/6 V/60 V/600 V±(0,5%+5) |
| AC voltage measurement range | 4 V/40 V/400 V/600 V±(1,0%+5) | 6 V/60 V/600 V±(0,8%+5) |
| DC current measurement range | Not applicable | 60 A/600 A±(2,5%+5) |
| AC current measurement range | 4 A/40 A/600 A±(2,5%+8) | 60 A/600 A±(2,5%+5) |
| Resistance measurement range | 400Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ ±(1.0%+5) | 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ/60 MΩ±(1,0%+5) |
| Capacitance measurement range | 4 nF/40 nF/400 nF/4μF/40 μF/400 μF/4 mF ±(4.0%+5) | 10 nF/100 nF/1 μF/10 μF/100 μF/1 mF/10 mF/100 mF±(4,0%+3) |
| Frequency measurement range | Not applicable | 10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz±(1,0%+3) |
| Fill factor measurement range | Not applicable | 1%-99%±(3,0%+3) |
| Temperature measurement range | N/A | -40°C-1000°C±(1,0%+2); -40°F-1832°C±(1,0%+2) |
| Number of counts | 4000 | 6000 |
| Range selection | Automatic | Automatic |
| Continuity test | Yes, audible and light alarm | Yes, audible and light alarm |
| Diode testing | Yes | Yes |
| Data storage | Yes | Yes |
| NCV | No | Yes, audible and light alarm |
| Illumination | Yes | Yes |
| Flashlight | Yes | Yes |
| DCA Zero | No | Yes |
| Low battery indicator | Yes | Yes |
| Automatic shutdown | Yes | Yes |
| True RMS value | Yes | Yes |
| LPF | No | Yes |
| MAX/MIN | Yes | Yes |
| LowZ | No | Yes |
| Power supply | 2x AAA 1.5V battery(included) | 2x AAA 1.5V battery(included) |
| Weight | Approx. 260 g | Approx. 260 g |
| Dimensions | 193x73x34 mm | 193x73x34 mm |
| Jaw size | ∅26x44 mm | ∅26x44 mm |
| Safety | EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V | EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V |
